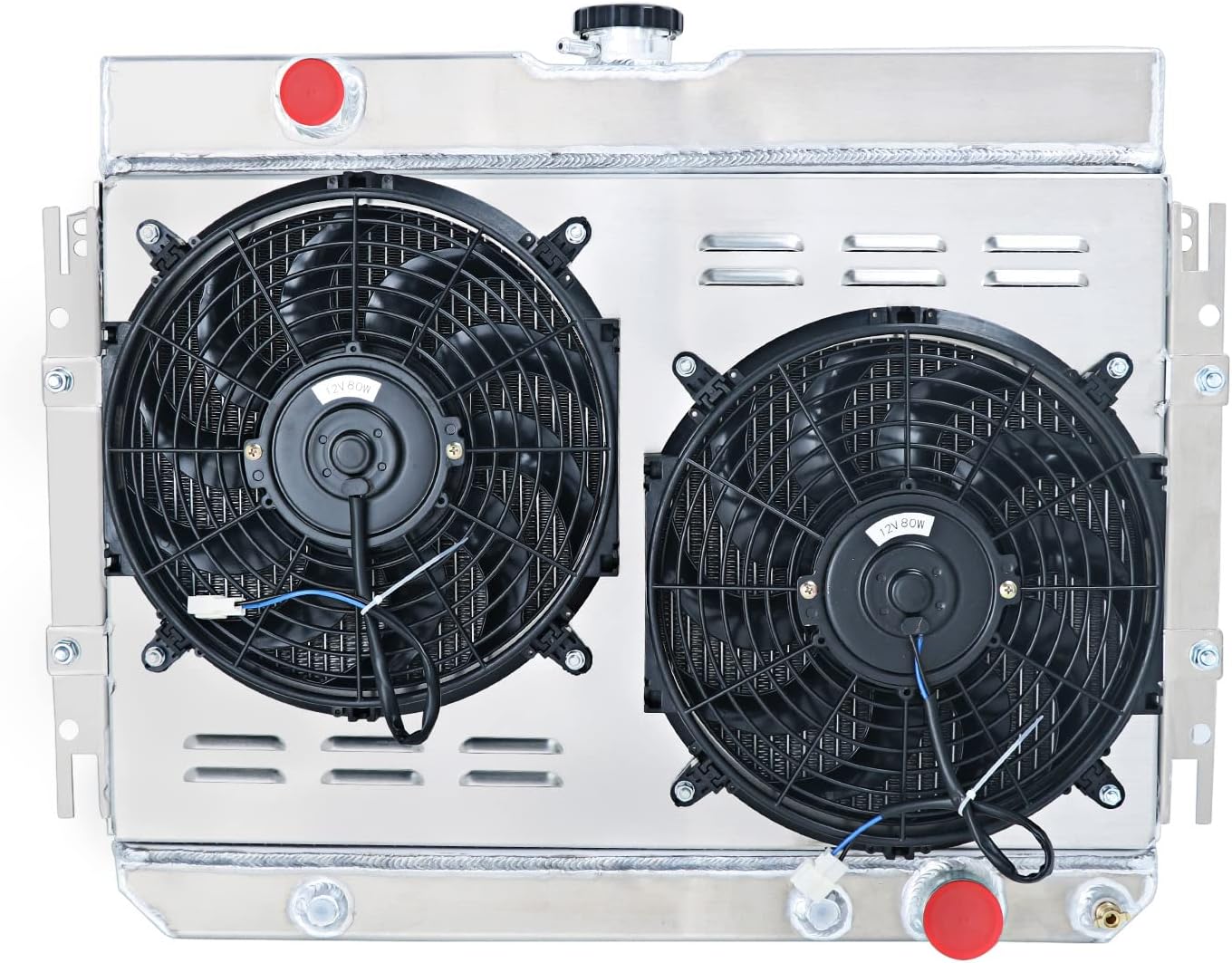

4 Row All Aluminum Radiator + Shroud + Fan + Relay Fit 59-68 Chevy Bel Air/Biscayne/Caprice/Chevelle/El Camino/Impala/Kingswood 3.2L 3.8L 4.1L L6/4.6L 5.0L 5.7L V8

Fitment1963-1968 Chevy Bel Air 3.8L 4.1L L6/4.6L 5.0L 5.3L 5.4L 6.5L 6.7L 7.0L V81963-1968 Chevy Biscayne 3.8L 4.1L L6/4.6L 5.0L 5.3L 5.4L 6.5L 6.7L 7.0L V81976-1968 Chevy Caprice 4.1L L6/4.6L 5.0L 5.3L 5.4L 6.5L 7.0L V81964-1965 Chevy Chevelle 3.2L 3.8L L6/4.6L 5.3L 6.5L V81959-1960 1964-1965 Chevy El Camino 3.2L 3.8L L6/4.6L 5.3L 5.7L V81963-1968 Chevy Impala 3.8L 4.1L L6/4.6L 5.0L 5.3L 5.4L 6.5L 6.7L 7.0L V81959-1961 Chevy Kingswood 3.8L L6/4.6L 5.7L 6.7L V8Radiator DetailsRow Count: 4 RowUpper Inlet: 1.5in located on driver sideLower Outlet: 1.77in located on passenger sideSurface Finish: Aircraft Grade Raw AluminumOEM style brass petcock drainCNC machined filler neck and capFans SizeMaximum Fan CFM: 2300±200 cfmFan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsThermostat KitRED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Part Number Manufacturer Part Number: 289, CC289, AE289, EC289, MC289, DPI289, CU289, KKS289, SBR289Interchange Part Number: RADS289, Q289, SPTCU289, RA289, RK289, 0289AA, RAD289, SDD-RA-MID64Other Part Number:040876432895, 3002308, 3002312, 3002313, 3005802, 3007610,010690SNN

• Core Size: 2.44inT x 16inH x 24.72inW Overall Size: 22.8inH x 28inW
• Inlet/Outlet Diameter:1.5in/1.77in
• Package Include: Come with 1x4Row New Radiator.1x Aluminum Shroud.2x12”Fans.1x Thermostat Relay Kit
• With an transmission cooler to provide optimal fluid temperatures for automatic transmissions.
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
