Renogy 800W 12V/24V Monocrystalline Solar Premium Kit w/Rover 60A Charger Controller, 8pcs 100W Solar Panel with 60A MPPT Rover Charger Controller, Bluetooth Module

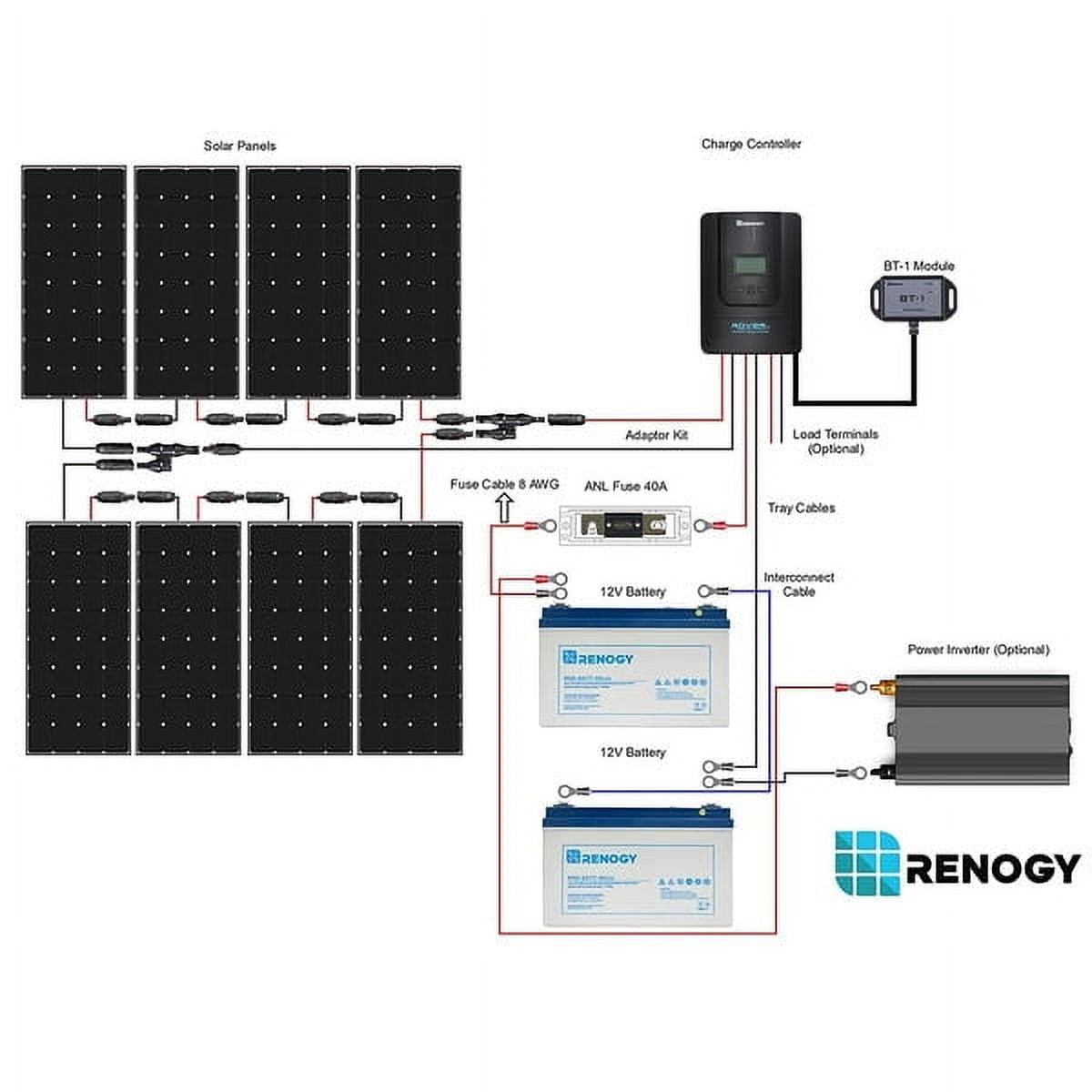

The Renogy 800W 12V/24V Premium Kit is easy for you to install, and it is the most economical choice for the off-grid adventurer. Renogy Solar Kit comes with solar panels, charge controllers, and needed electrical wiring, fuses, and monitoring typically required for an off-grid installation, making it ideal for off-grid and mobile applications.The Premium Kit will produce an average of 3.5-4kWh of electricity per day (Based on 5 hours of direct sunlight conditions). The 8 x 100W solar panels don't take up much roof space, but their energy can offset some large-size loads such as television, washing machine, electric stove, etc. With the Rover Li 60A MPPT charge controller, the kit can meet your further power needs by adding more of the same solar panels; for example, a 24V system expandable up to 1600W.The Premium Kit can build a reliable and environmentally friendly power supply, perfect for a yard, barn, RV, boat, or camper. It can also be installed in a ground mount system next to off-grid campsites, as a power supply for outdoor appliances and emergencies, or as a stand-alone power system for water pumps, greenhouses, or other remote structures and machinery.

• EfficientMonocrystalline panels come with high-efficiency cells Cell efficiency: Regular Monocrystalline 21%ReliableExtra thick anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistanceIntuitive4-Stage battery charging process for a rapid, efficient, and safe battery chargingSafePre-drilled holes on the back of the panel allow for fast mounting and securing

• 【Efficient Performance】 The Premium Kit will produce an average of 3.5-4kWh of electricity per day (Based on 5 hours of direct sunlight conditions). The bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance. The Module Efficiency can reach 17.8%.

  【Solid Quality】 Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life.

  【Ready to Install】 This Renogy Solar Kit includes the equipment necessary for building a new system, such as necessary cables, Z-brackets, and pre-drilled holes on the back frame of the panel, allowing fast and secure mounting. With the Rover Li 60A MPPT charge controller, the kit can meet your further power needs by adding more of the same solar panels; for example, a 24V system expandable up to 1600W.

  【Stay Connected】 Easily monitor by your phone. The BT1 Bluetooth module can pair with Renogy DC Home App and transmits system operation data directly to your phone, the Bluetooth signal available up to 82ft.

  【Full System Protection】 The Rover Li 60A MPPT Charge Controller has built-in protection to safeguard your systems, such as reverse polarity protection, overcharging protection, overload protection, short circuit protection, etc. This kit is also equipped with an In-line fuse and ANL fuse components, devised to add overcurrent protection on your charge controller and battery bank.




  Speicifications:

  RENOGY 100W MONOCRYSTALLINE SOLAR PANEL

   Maximum Power: 100W

   Maximum System Voltage: 600V DC (UL): 600V DC (UL)

   Open-Circuit Voltage (Voc): 24.3V

   Optimum Operating Voltage (Vmp): 20.4V

   Optimum Operating Current (Imp): 4.91A

   Short-Circuit Current (Isc): 5.21A

   Dimensions: 41.8 x 20.9 x1.4 in

   Weight: 14.1lbs/6.4kg

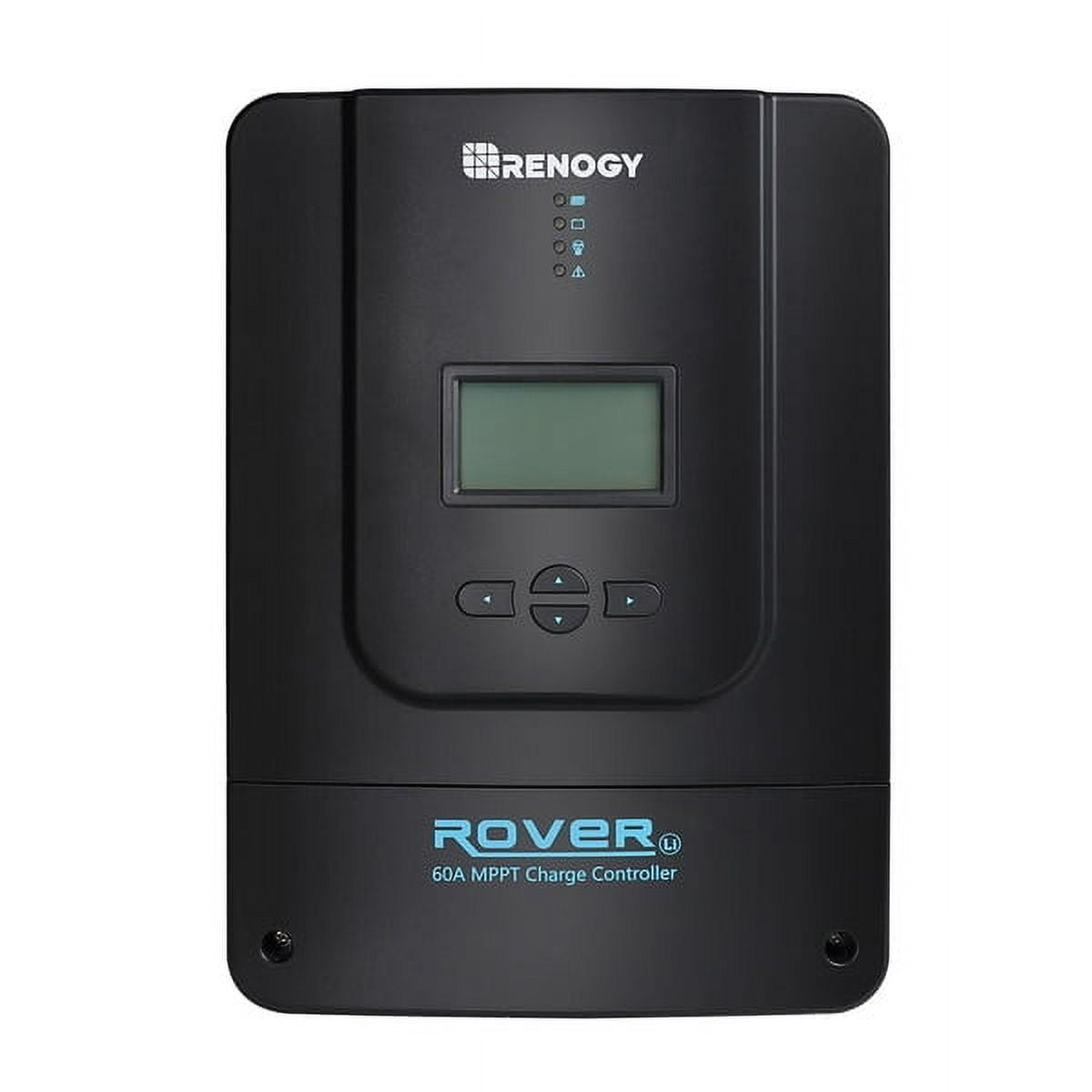

  ROVER LI 60A MPPT SOLAR CHARGE CONTROLLER

   Rated Charge Current: 60A

   Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

   Self-Consumption: 0.7W-1.2W

   Rated Load Current: 20A

   Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)

   Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)

   Weight: 7.9lbs

   Enclosure: IP32

   Terminals: 25mm2 4AWG

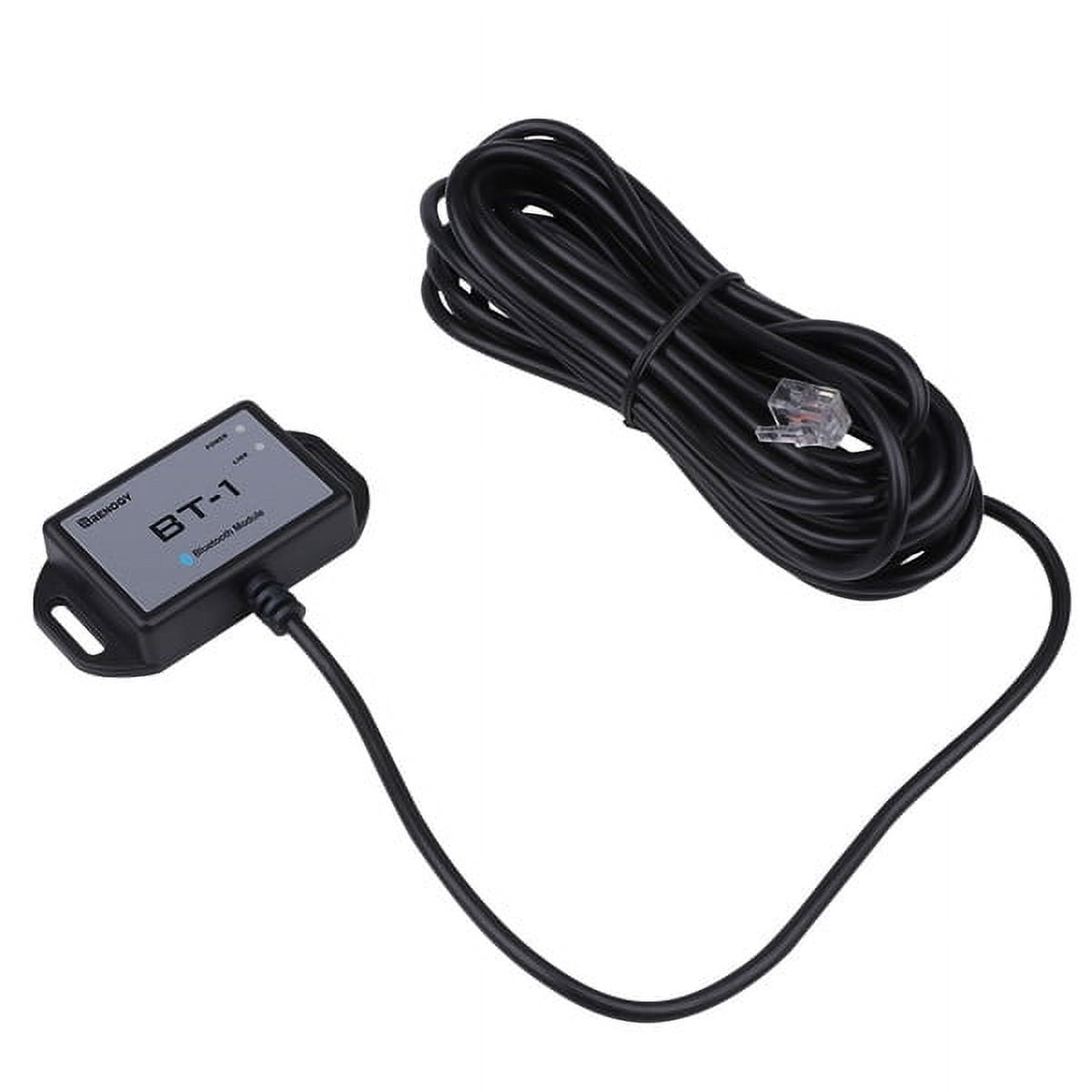

  BT-1 BLUETOOTH MODULE

   Input Voltage: 5V

   Communication Range: ≤82ft

   Compatibel Models: All Renogy Controllers with RJ12 port

   Operation Temperature: -20°C~85°C (-4°F to 185°F)


  RENOGY SOLAR BRANCH CONNECTORS MMF+FFM PAIR

   Withstanding voltage: 1000V DC(TUV), 600V(UL)

   Protection Degree: IP67, mated

   Protection Class: Class II

   Temperature Range: -40°F to 194°F

   Insulation Material: PC/PA

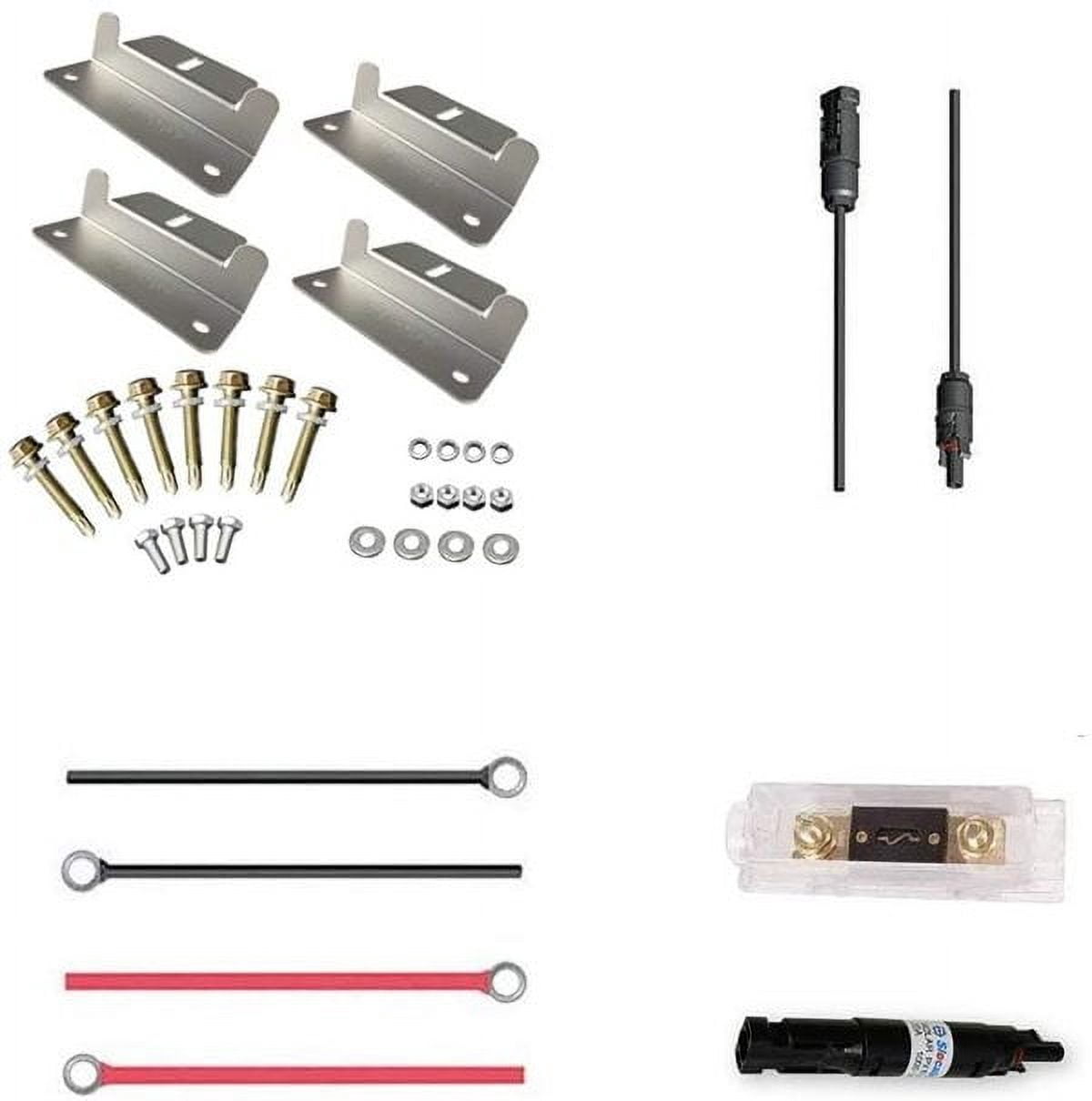

  Package Includes:

   8 x 100W Mono Solar Panel

   1 x Rover Li 60A MPPT Charge Controller

   1 x 8ft 4AWG Tray Cable

   1 x 2ft 4AWG Fuse Cable

   1 x 8ft 4AWG Tray Cable

   1 x 15A Solar Connector and 60A ANL Fuse

   1 x Renogy Solar Solar Branch Connectors MMF+FFM Pair

   1 x BT-1 Bluetooth Module

   8 x Mounting Z Brackets (Set)( 8 x (8 × Long Cap Bolts, 4 × Short Bolts, 4 × Spring Washers， 4 × Washers， 4 × Z Shape Solar Panel Brackets, 4 × Nuts）)
